ONL-XE1800 High Speed non woven fabric slitting machine manufacturer

FOB Reference Price:Get Latest Price
$6,000.00 - $13,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ONL-XE1800
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 14 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
Beverage, Commodity, Food, Textiles
Packaging Material:
Plastic, Wood
Type:
Other
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Ounuo
Power:
3KW
Voltage:
220V 50Hz
Weight:
650kg
Automatic Grade:
Automatic
Certification:
CE ISO
Packaging Type:
Case, Film
Driven Type:
Electric
Dimension(L*W*H):
2400x1800x950mm
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Printing Shops, Energy & Mining, Advertising Company
Slitting Material:
Non Woven Fabric&BOPP,PET,CPP,PVC etc and other plastic films
Intergral Type:
Can Customized
Slitting Width:
25-1800mm
Slitting Speed:
30-80m/min
Double Rewinding Parts:
Can Customized
Standard Structure:
Two Parts, Split Type
Automatic loading:
Can
More Wider Or Narrow:
Can Customized
Sample Test:
Can Supply after get your sample
Other Request as color, speed:
Can Checked after we talk
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month Non Woven Fabric Slitting Machine
Packaging & Delivery
Packaging Details
Plastic film with pearl cottom, accept customer's requirement
Port
Ningbo Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 14 To be negotiated
Video Description
Product Description

Product Application

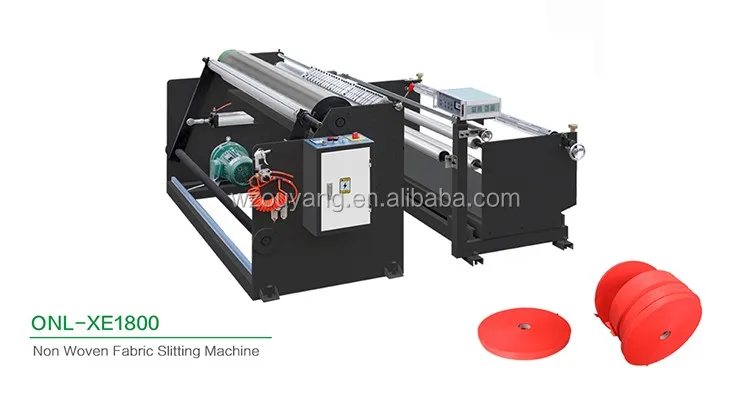

ONL-XE1800 Non Woven Slitting Machine is special for non woven fabric slitting. Also can slitting BOPP,PET,CPP,PVC and other plastic films.

Main Technical Variables
Type
ONL-XE1800
Slitting width
25-1800mm
More wider or more narrow can
Slitting speed
30-80m/min
Power supply
220v 50Hz
Total power
3 kw
Overall size
2400x1800x950mm

Features

1. Plat steel welding, firmly and balanced, more stable in the high-speed operation
2. chromium-plated steel pipe dynamic balance processing
3. Feeding with 3 inch air shaft, maximum feeding diameter is 1200mm, with magnetic powder tension controller and edge automatically align device.
4. rewinding with 3 inch air shaft and magnetic powder controller, easy to operate, maximum rewinding diameter is 1000mm;rewinding aesthetic and neatly.
5. Cutter can use special blades or flat knife (cutter blades), 18mm-3200mm adjustable.
6. Spindle and circular knife with CVT system can be used as high-low speed control and reversing switch control. Electric speed control system with manual adjustment, convenient and simple to operate.
7. Double-faced diamond with grinding and sharpening system, the grinding wheel life is up to two years. Sharpening without disassemble with long life. Superior efficiency with dust absorption equipment to maintain the fabric and track clean;
8. Importing precise ball screw and slides, paralleled promoting the cutting width, importing AC motor step-less adjustment system to adjust and control the cutting speed, high-precise cutting, and the accuracy can be controlled within 0.1mm.
9. Standard configuration deviation-checking equipment system to further ensure the cutting precision.
10. Chinese and English operation interface with LCD display screens, can direct input
11. Several kinds of cutting width and number of load settings, and with manual/automatic conversion function, making the operation more simple and convenient;
12. High speed feeding design, reducing the labor effectively and increasing the
13. Production efficiency
14. Automatic counting device, clear at a glance.

Detailed Images

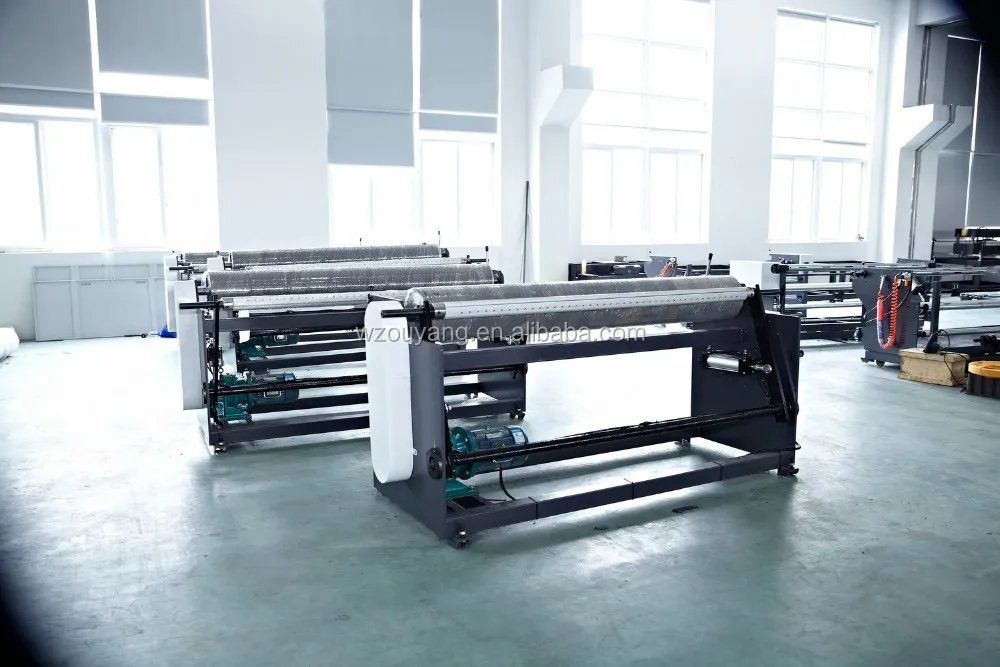

Rewinding Part

Feeding Part

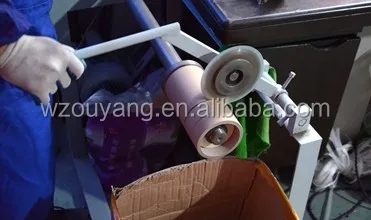

Cutting Paper Tube

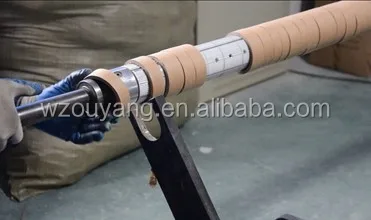

Tube Put On Air Shaft

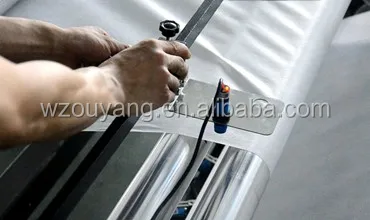

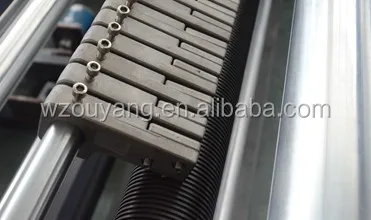

Adjust Knives Distance

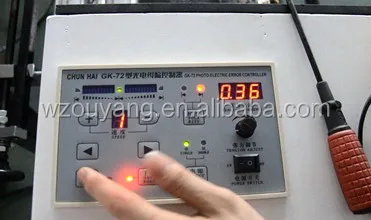

Adjust Electric Eye Site

Adjust Magnetic Tension Device

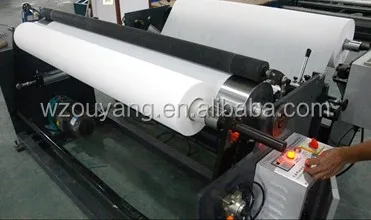

Adjust Speed, Start Slitting

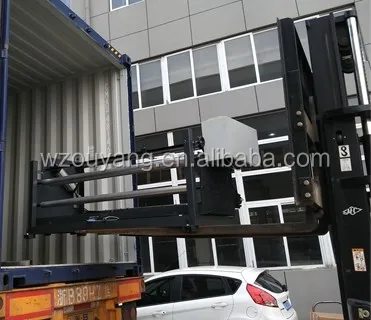

Packing & Delivery

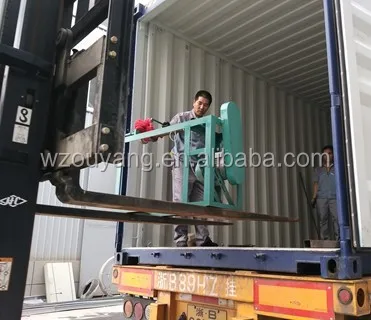

The following is OUR load container info for ONL-XE1800 Slitting Machine Feeding Part. Special data  would be supply after confirm your order.
Weight
250KG
Packaging Details
1.no package
2.plastic film with pearl cottom
3.woode pallet as your request

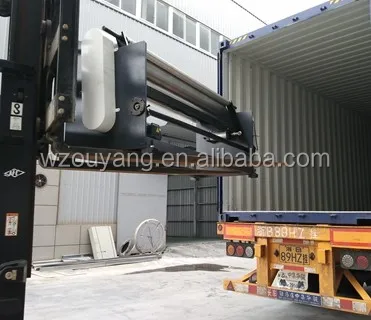

Slitting Machine Rewinding Part Delivery
Weight
400KG
Packaging
Details
1.no package
2.plastic film with pearl cottom
3.woode pallet as your request
Pipe cutting machine Delivery
Weight
100KG
Packaging
Details
Standard Package for the circular cutter
Related Products

Non Woven Bag Making Machine

One machine can multifunction for five bag type, Popular Choose of New Invester

Leader

One time forming box bag making machine, Lastest market

Soft Handle Sealing Machine

Manual operation, one time one bag side
Suitable for Bag Samping
Our Company

Ounuo Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevant equipments, has an area of 8,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.

Ounuo have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product originateds fromm our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.

2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate macinings, 24 hours processing to guarantee the precision of the machine. All our products are better than the relevent industry standards.

Our Service

Pre-Sales One-stop Service

* Inquiry and consulting support
* Lastest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support

After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to instal the machine, training how to use the machine
* Engineers available to service machinery overseas

FAQ

1. How long will your engineer reach our factory?
Our After-sales Specialist would contact with you, confirm the final scheduling according to your reasonable request.
2. How many days will you finish installing?
We will finish installation and training within 7 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our after sales specialist at any time. 2017, we setup our independence after-sales department with 23 engineers. Our engineers will take a solution video according your description.
9. How many workers do we need running those machines?
Except two for bag making machine, flexo printing machine, slitting machine, ultrasonic sewing machine, hydraulic punching machine only need one person for each.
